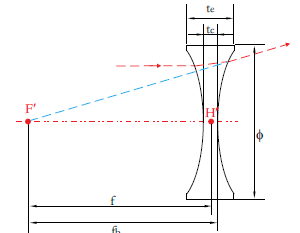

双凹透镜
The based function of the lenses is producing diverging light or a virtual image, where the input light is converging.
Specifications
|
Item
|
Commercial
|
High Precision
|
|
Material:
|
N-BK7；Fused Silica ；Silicon
|
|
|
Diameter φ:
|
3mm~60mm
|
|
|
Dimension tolerance:
|
±0.1mm
|
±0.05mm
|
|
Focus length tolerance:
|
±2%@632.8mm
|
|
|
Surface figure(per 25.4mm)
|
λ/4@632.8nm
|
λ/10@ 632.8nm
|
|
Surface quality:
|
MIL40-20
|
|
|
Clear aperture:
|
85%
|
|
|
Centration:
|
≤3′
|
|
|
Bevel(face width×45°) :
|
0.2~0.4mm or specified by customer
|
|
|
Coating:
|
Specified by customer
|
|
