G 透镜
They are similar to C-LENS except that methods of fabricating are different. They are used to focus and collimate light sources. It is widely used in both active and passive fiber-optics components, MEMS, attenuators, fiber-to-optical coupling systems and imaging system.
Specifications
|
Item
|
Specifications
|
|
Material:
|
Glass like material
|
|

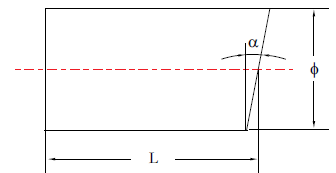

Diameter φ:
|
1.0+0.005/-0.01mm；1.8+0.005/-0.01mm
|
|
Angle α:
|
8°±0.5°
|
|
Pitch:
|
0.23；0.25
|
|
Length tolerance:
|
±0.02mm
|
|
Surface quality:
|
MIL40-20
|
|
Clear aperture:
|
90%
|
|
AR coating:
|
R<0.2%@λc±40nm；λc=1310；1550…
|
|
Thermal expansion coefficient:
|
＜10×10^-6/℃
|
|
Operating Temperature:
|
≤350℃
|
