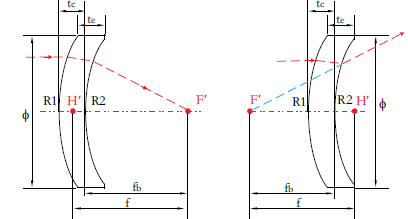

弯月透镜

Positive meniscus lenses are designed to minimize spherical aberration and are usually used in small focus numerical applications; meniscus lenses can also improve image quality and reduce spot size, without an undue increase in the aberrations.
Negative Meniscus lenses are the best lens form where one conjugates is relatively far from the lens or where both conjugates are the same size of the lens. They are commonly used in beam expanding applications where minimal spherical aberration is desired.

Specifications

Item
 Commercial
 High Precision
Material:
N-BK7 and others
Diameter φ:
3mm~60mm
Dimension tolerance:
±0.1mm
  ±0.05mm
Focus length tolerance:
±2%@632.8mm
Surface figure(per 25.4mm)
λ/4@632.8nm
 λ/10@ 632.8nm
Surface quality:
MIL40-20
Clear aperture:
85%
Centration:
 ≤3′
Bevel(face width×45°):
 0.2~0.4mm or specified by customer
Coating:
    Specified by customer
